Processing demo: Hotel room interface

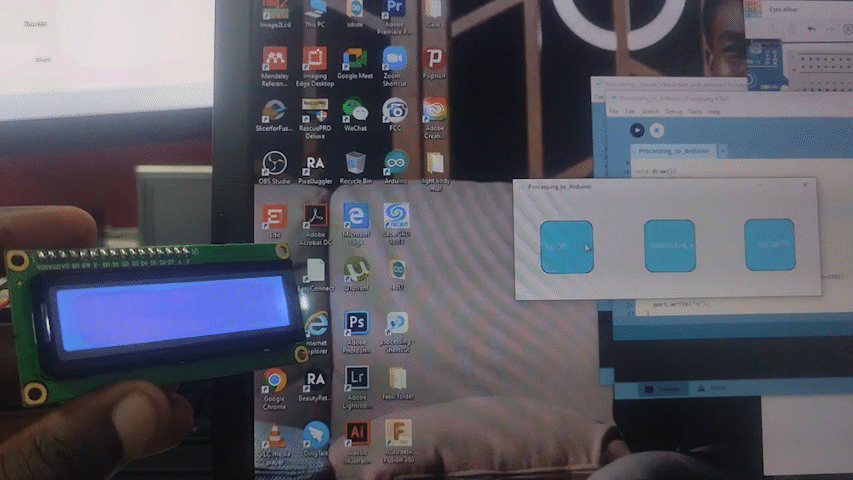

This assessment shows the interaction between Arduino and Processing. In this demo, Processing is used to control the output of an LCD screen that is connected to an arduino uno. The 3 squares drawn in Processing “Food, Management, Security" each produce a different message on the LCD screen when clicked with the mouse.

Processing Code

import processing.serial.*;
Serial port;

void setup(){
  port=new Serial(this,"COM10",9600);
  size(600,200);
  background(255);
}

void draw(){
  fill(0,200,612);
  rect(50,50,100,100,20);
  rect(250,50,100,100,20);
  rect(450,50,100,100,20);
  textSize(16);
  fill(255);
  text("FOOD", 60, 105);
  text("MANAGEMENT", 260, 105);
  text("SECURITY", 475, 105);

Arduino Code

#include <LiquidCrystal.h>
// initialize the library with the numbers of the interface pins
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

int e = 0;
//int a = 0;

void setup()
{
  Serial.begin(9600);
  lcd.begin(16, 2);



}

void loop()
{


  if(Serial.available());
  e = Serial.read();
  if (e == 97)  //a in ASCII is 97

Results

Arduino components include:

LCD screen

1 bread board

220-ohm resistor

1 Arduino uno board

potentiometer
